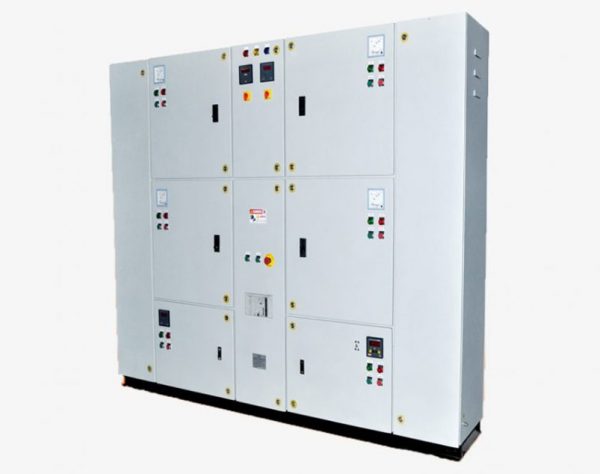

MCC and PF Panel

Motor control centre is the acronym for MCC. It has motor and blower feeding. Feeders are sized based on the horsepower of the motor. Most of the MCCs will have some sort of auto/manual provision. Motors can be operated manually if they provide the manual provision. An external signal is needed to start the motor in an auto-provision. The control panel sends the signal. The control panel will also have indicators for the motor’s functioning.
In a motor control center (MCC), a common power bus is used to connect one or more enclosed sections, each of which houses one or more motor control units. Modern motor control centers are factory assemblies of numerous motor starters. Variable frequency drives, programmable controllers, and metering can all be found in a motor control center, which can also serve as the building’s electrical service entry.

Usage

Electric motors in automobiles have been utilized in motor control centers since the 1950s when the vehicle manufacturing sector began to employ huge numbers of them. It is not uncommon to see them employed in commercial and industrial settings. A separate air-conditioned room may be utilized for the motor control center if corrosive or dusty operations are involved, although in most cases the MCC will be located directly next to the machinery it is controlling.
